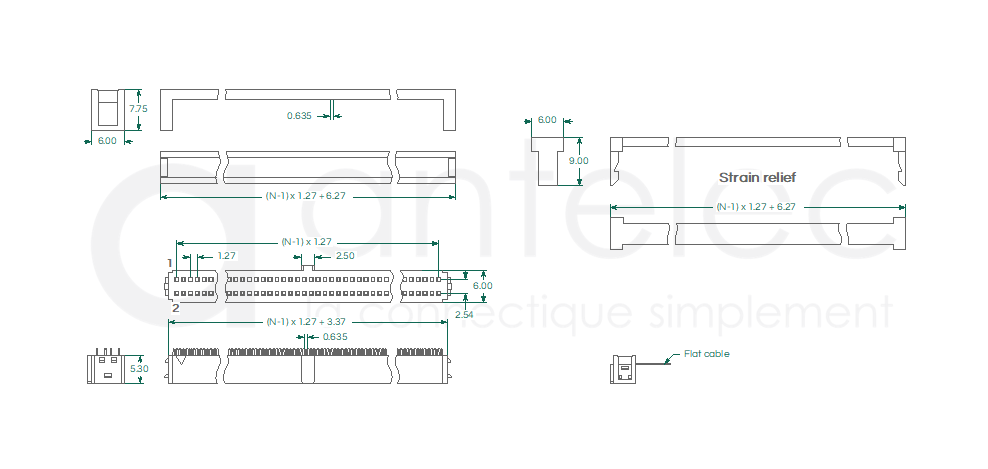

1.27 x 2.54 mm
IDC socket for pin
0.46 mm
0.46 mm
Technical specifications
Current rating : 0.5 A
Dielectric withstanding voltage : 300 Volts AC during 1 min
Insulation resistance : > 1000 MΩ
Contact resistance : < 30 mΩ
Operating temperature : -40°C to +105°C
Contact : brass
Plating : selective gold/tin
Insulator : PBT, UL94V-0
Gauge : AWG 28
Dielectric withstanding voltage : 300 Volts AC during 1 min
Insulation resistance : > 1000 MΩ
Contact resistance : < 30 mΩ
Operating temperature : -40°C to +105°C
Contact : brass
Plating : selective gold/tin
Insulator : PBT, UL94V-0
Gauge : AWG 28
TMBP-127/254-XX-(D or C)S-D (page 200)
Pin header
0.46 mm pitch 1.27 x 2.54 mm
Flat cable pitch 0.635 mm
Pin header
0.46 mm pitch 1.27 x 2.54 mmFlat cable pitch 0.635 mm
Create your part number
|
CAD
IDC
|
127/254
Pitch
1.27 x 2.54 mm |
XX
Total
number of contacts |
AA
With
strain relief or SA for without strain relief |
DE
Selective
|
Product range
Number of pins :
2 rows : 10, 16, 20, 26, 30, 34, 40,
50, 60, 68, 80, 100 pins
2 rows : 10, 16, 20, 26, 30, 34, 40,
50, 60, 68, 80, 100 pins
201
